Oil Less Compressor Block D 52 - Components for Screw Compressor Systems
Function:
This two stage piston compressor is designed for the installation within oil less air compressor packages.
The unit is suitable for electric, diesel and hydraulic drive.
Operating range:
 |
Power Range ca.: | 4 5,5 |
kW hp |
 |
Capacity max.: | 340 12 |
l/min cfm |
 |
Operating pressure max.: | 15 210 |
bar psig |
 |
Speed max.: | 1000 | rpm |
 |
Unit weight ca. | 50 110 |
kg lbs |
Order data:
| Type | Order No. | Material |
|---|---|---|
| D52 | 11910 | Grey cast iron / aluminium |
Options:
| Type | Order No. |
|---|---|
| Automatic condense drain | 11902 |
| Cooler incl. after-cooler | 071613 |
| Intake filter control | 070599 |
| Temperature sensor | 071657 |

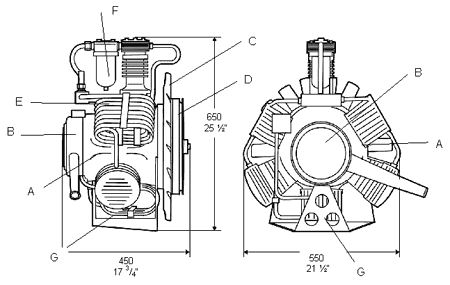

Dimensional Details D 52:
| A | Compressor block |
|---|---|
| B | Intake air filter |
| C | Fan |
| D | V-belt pulley |
| E | Intermediate cooler |
| F | Condensate separator |
| G | Compressor foot |
