MINI-VERTICUS III – The Supersilent Compressor Unit, 150–250 l/min
Silent housing, compact and powerfull!
A newly designed field-proven system concept that sets standards in technology and ergonomics.
The MINI-VERTICUS III unit combines leading-edge compressor technology with top quality "Made in Germany". The sound-proofed MINI-VERTICUS III is the ideal partner for diving centers and diving shops, who count on reliable and long-life use coupled with low operating expenses.
Rapid spare parts supply and service guarantee a sucessful diving season - globally. The patented P41® purification system guarantees purest breathing air quality acc. to DIN EN 12021.
The BAUER Compressors Group has sixty years of experience in the manufacture of high pressure compressors. Be assured: our compressor will be your dependable source of clean breathing air for many years, even decades.

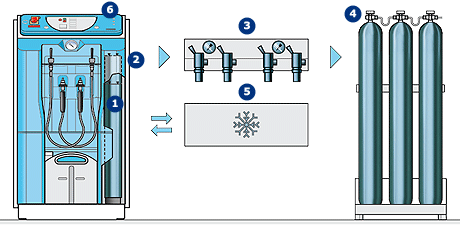

Systematic Filling
- P61-FILTER SYSTEM optional with of higher capacity for longer filter life
- Charge connection for external filling panel and storage bank
- External filling panel for high charge capacity requirement
- Storage battery for a large volume of spare air
- B-KOOL refrigeration dryer for increased life span of the purification cartridge
- SECURUS filter monitoring guarantees ultra-pure air conforming to DIN EN 12021
Technical Data
| Model | FAD | RPM | Filling rate | Drive | Comp. stages | Filter system | Dimensions approx. cm |
Weight net | Noise @ 1m/3' | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| max. 330 bar 1) | l/min 2) | m³/h | min-1 | min 3) | kW | HP | P-Range | L | W | H | app. kg | dB (A) | |
| MV 100-4-3 | 150 | 9 | 1340 | 1,3 | 4 | 5,5 | 3 | P41 | 102 cm | 74 cm | 130 cm | 255 | 68 |
| MV 120-4-3 | 200 | 12 | 1270 | 1,0 | 4 | 5,5 | 3 | P41 | 255 | 68 | |||
| MV 120-5,5-3 | 250 | 15 | 1470 | 0,8 | 5,5 | 8,0 | 3 | P41 | 260 | 68 | |||
1) available with switch over device 330 / 225 bar or 225 bar/330 bar alternatively
2) Cylinder filling from 0 to 200 bar
3) Filling rate for 1 l cylinder capacity
