B-KOOL WITH B-CONTROL MICRO
B-KOOL AS A STAND-ALONE SOLUTION
The systematic approach to reducing costs
100 – 350/500 bar
200 – 700 l/min
Particularly at locations with high ambient temperatures, the B-KOOL refrigeration dryer ensures a vastly prolonged filter life. Operators benefit from lower filter cartridge and storage costs in addition to longer interruption-free system operation.
Photo on the right side: B-KOOL is integrated on top of the system
System variants
- B-KOOL 680i – Integrated into the system.
- B-KOOL 680s – As a stand-alone solution.
- SECURUS – For efficient utilisation of the filter cartridge.
- Storage bank – For systems with low compressor performance, permits long interruption-free filling cycles for economical system operation in conjunction with B-KOOL.
The B-KOOL system is positioned between the oil and water separator and filter system. The compressed air is cooled down inside a closed cooling circuit. As a result, the dew point of the compressed air decreases and most of the moisture and oil contained condenses or is removed by the oil and water separator. Consequently, only a very small amount of moisture enters the filter cartridge, which significantly increases its life.
With B-KOOL, filter cartridges can last up to 11 times longer!
Recommendation for using a B-KOOL
B-KOOLi is integrated on top of the system
B-KOOLs is installed as a stand-alone unit next to the system
| MODEL | PROFI-LINE | MV III | KAP | PE TE/HE | PE VE/OFFEN | VERTICUS 5 | PE VE/SILENT |
|---|---|---|---|---|---|---|---|
| OPTIONS | B-KOOL 680s 1) | B-KOOL 680i 2) / B-KOOL 680s 1) | |||||
| P41 filter system |  |
|
|
|
|||
| P42 filter system |  3) |
|
|
||||
| P61 filter system | |
|
|
|
|
||
| P81 filter system | |
|
|||||
ex works or retrofittable only possible ex works, no retrofitting possible
1) For separate installation | 2) Integrated into the system on site | 3) Only for PE 250 HE and PE 300 TE/HE
The original investment for B-KOOL is quickly recouped, because B-KOOL greatly reduces the consumption of original filter cartridges. The running costs are then virtually negligible.
In conjunction with the SECURUS filter monitoring system, B-KOOL ensures maximum utilisation of the filter cartridge capacity for even more cost-efficient operation.

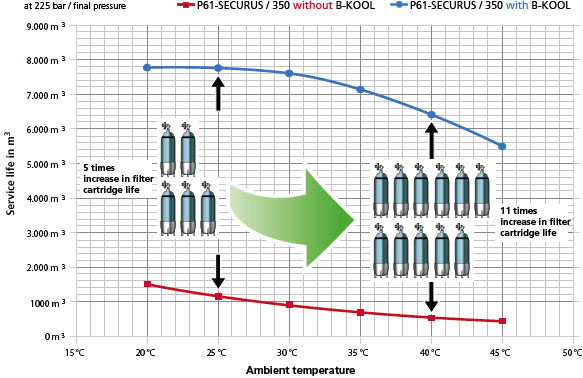

The following diagram illustrates the huge potential for savings B-KOOL offers:
| Dimensions (L × W × H) | B-KOOL 680s: 386 mm × 695 mm × 565 mm B-KOOL 680i: 760 mm × 346 mm × 535 mm |
|---|---|
| Weight | B-KOOL 680s: approx. 48 kg B-KOOL 680i: approx. 50 kg |
| Pressure range | 100 – 350 (500) bar |
| Ambient temperature | +5 °C up to +45 °C, indoors only |
| Air flow | 200 – 700 l/min (10 l cylinder filling from 0 – 200 bar) 200 - 650 l/min (as per ISO 1217) |
| Power consumption | approx. 550 W (50Hz); 610 W (60Hz) |
| Power supply | 100 – 127 VAC 50/60 Hz or 200 – 240 VAC 50/60 Hz depending on version |
