BREATHING AIR COMPRESSOR US PRODUCTS - AUTO CASCADE


...
AUTO CASCADE

Safe and Automatic Cascade SCBA Filling

 Four to One Safety Factor

All components are manufactured for 6000 psig service

 12 or 115 Volt Operated

Simply specify at time of order

 Manifold Integration

On any manufacturers cascade system

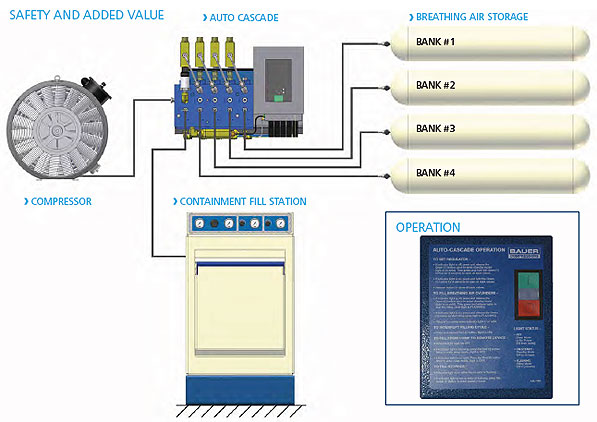

The world leader in high pressure breathing air is proud to introduce a new method of automatically cascading your air storage system.

The system utilizes our patent pending manifold block with integral valve bodies, couple this with a commercially available PLC controller and you have the simplest cascade system available today! What would you expect...it’s a BAUER.

STANDARD SCOPE OF SUPPLY

 Corrosion resistant high strength aluminum alloy manifold block

 Programmable Logic Controller for simplistic operation and heightened accuracy

 No adjustable shuttle valves

 LED indication as to which cascade cylinder is being utilized

 The system can be utilized on either stationary or mobile cascade systems

 A preset pressure bias of 0 psig can be adjusted to allow for quicker switch over time from one bank to another

 Pressure sensing by transducers rather than sequential valves, provides greater accuracy without leaks or pressure drift

 A bypass circuit is Incorporated into the system allowing the storage system to be bypassed. This enhancement allows for more effective hose reel operation or possibly filling a mobile cascade system from a stationary system

Can be installed onto any existing fill station or wall mounting
